Zephyr - Padák pre DJI Matrice 30 (Circuit Breaker)

Kód: ZEPHYR-M31-CC
Výpredaj
Značka: Dronavia
2 299 € –13 %
parachute zephyr pour matrice 300 rtk
2 299 € –13 % 1 990 € 1 658,33 € bez DPH
Na sklade (1 ks)
Môžeme doručiť do:
9.12.2024

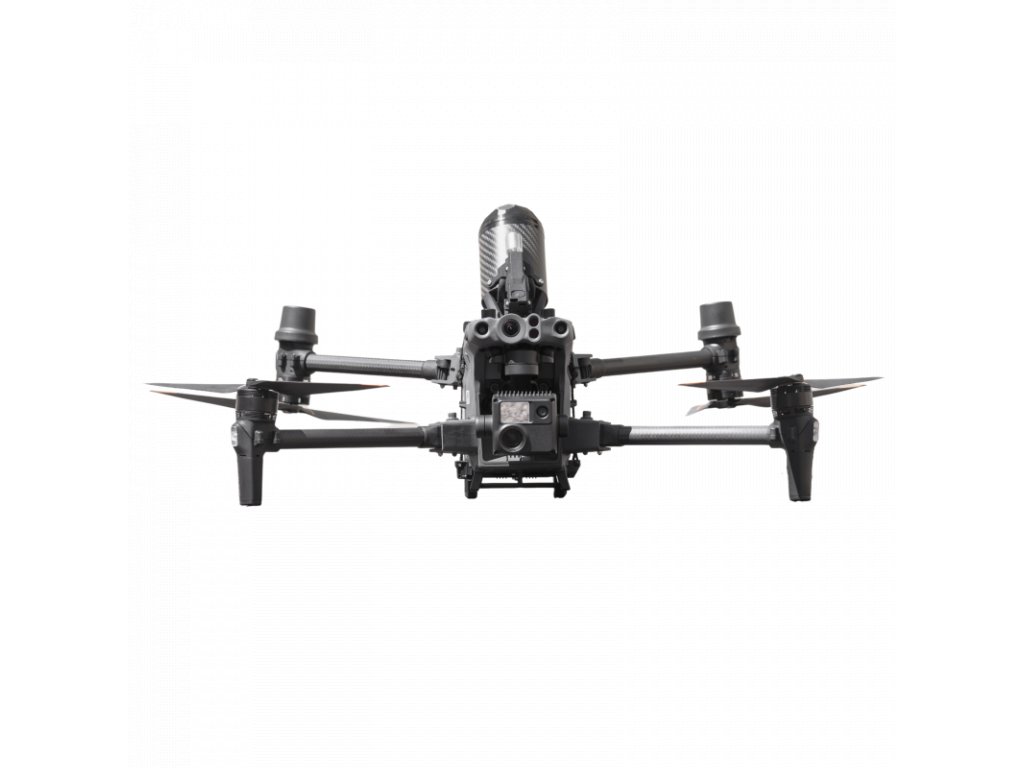

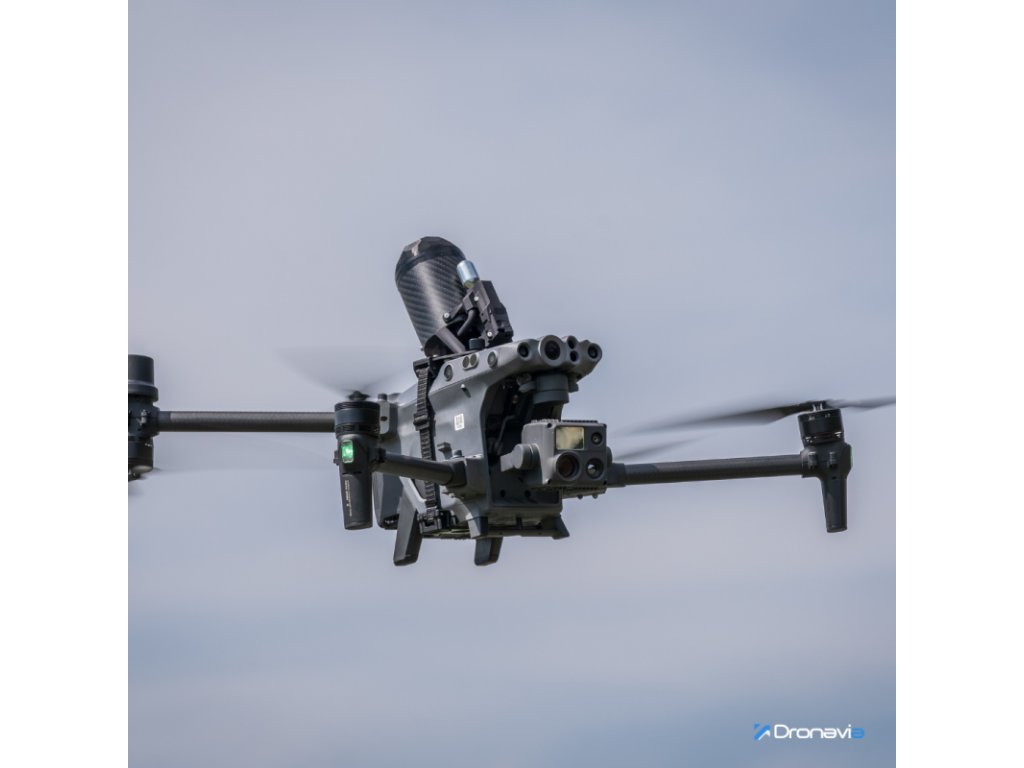

Jednopadákový padák Zéphyr M30 a systém FTS pre dron DJI Matrice 30 vám v prípade problémov umožní zabezpečiť vaše lety a spomaliť pádovú rýchlosť vášho Matrice 30 jednoducho požiadaním o vypnutie motorov a nasadenie padáka pomocou špeciálneho autonómneho diaľkového ovládania. Padák Zéphyr M30 je vybavený externým FTS s hmotnosťou 55 gramov a dosahom 5 kilometrov. Možnosť ľahko a rýchlo odstrániť padák z vášho dronu. Verzia s externým spínačom pre vypnutie dronu v prípade aktivácie padáka.

Detailné informácie

Podrobný popis

The lightest parachute system on the market: only 330g !

The basic parachute kit includes an ultra-fast CO2 canvas ejection system as well as a dedicated autonomous remote control with 30 hours of autonomy (to be attached to the Smart Controller).The parachute is also available as a DGAC S1 S2 S3 approved kit with an external FTS (to be installed by yourself). Each version of the FTS includes an audible alarm and a charging socket to power and charge the parachute when the drone is switched on and thus obtain unlimited autonomy.

The lightest parachute system with motor cut-off in the world !

The parachute + external FTS kit is the lightest solution available on the market, with a total weight of only 385g. Pilots have the possibility to carry more than 500 grams of payload, in addition to our safety systems, while still complying with the DGAC S2-S3 approval (total weight of 4.7 KG in flight). The S1/S2/S3 approval proposed by Dronavia is the only one on the market that allows for the carrying of payload. Note that for an equivalent payload, the flight time is longer with the Zéphyr parachute than with another parachute system. The external FTS is installed between the batteries and the drone by yourself. The operation is reversible, it does not modify the drone and allows to keep the DJI manufacturer warranty. The FTS can be used alone, without a parachute, to increase the available payload and flight time for the S2 scenario.The payload of the Matrice 30 in the S2 scenario increases to 960 grams in this configuration ! The audible alarm module is connected to the USB-C socket on the underside of the drone.

A very quick installation of the system

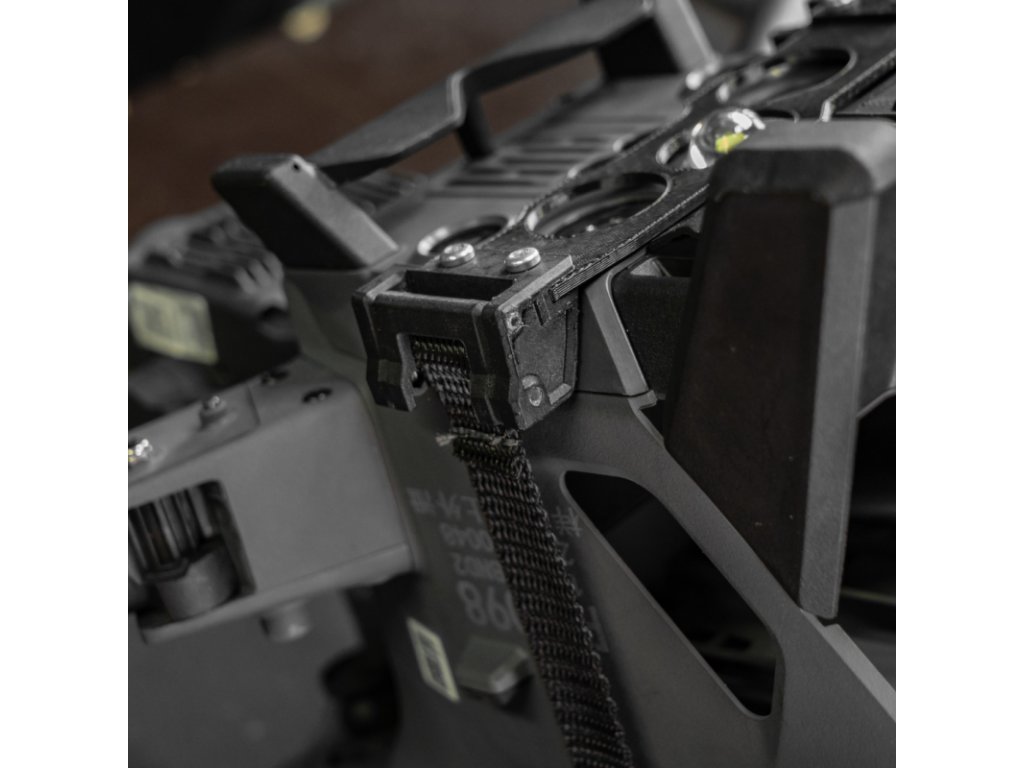

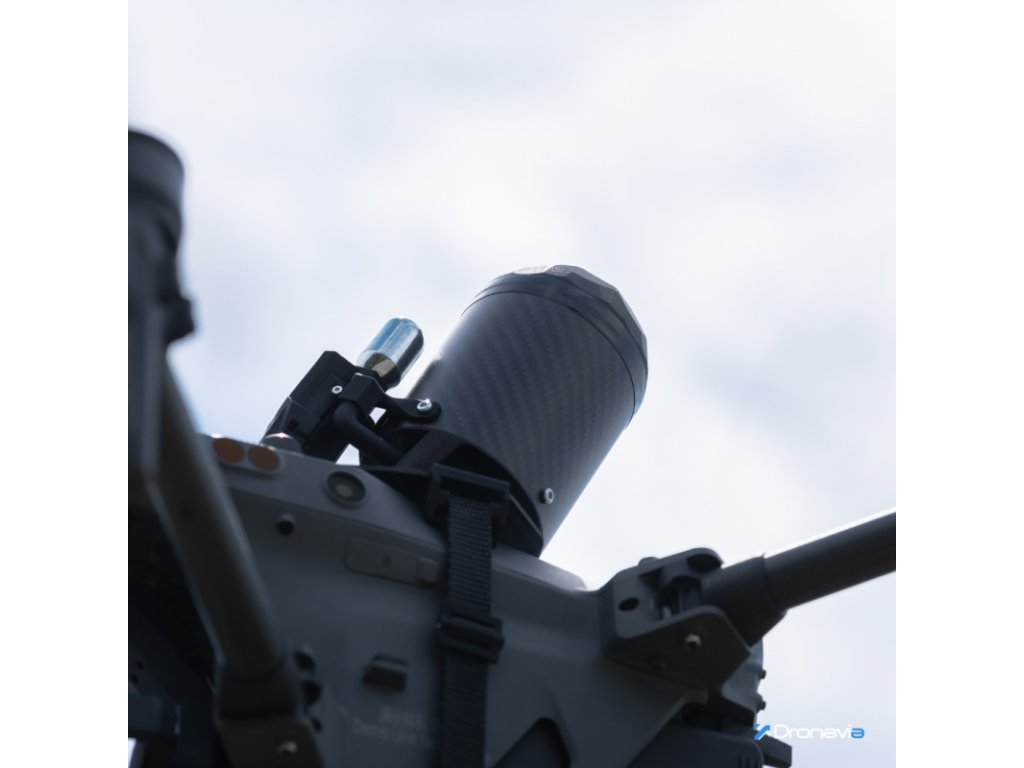

Fixed on the 4 upper screw threads of the drone, the parachute can be disassembled in less than a minute, without having to go to the workshop. An optional bracket is available in our shop to attach it to the underside of the drone when using the upper pod. The kit with the FTS can also be disassembled in seconds. The fuse module is simply inserted between the batteries and the drone. It directly includes the audible alarm. It weighs 55 grams.

The fastest, most reliable and most efficient CO2 system

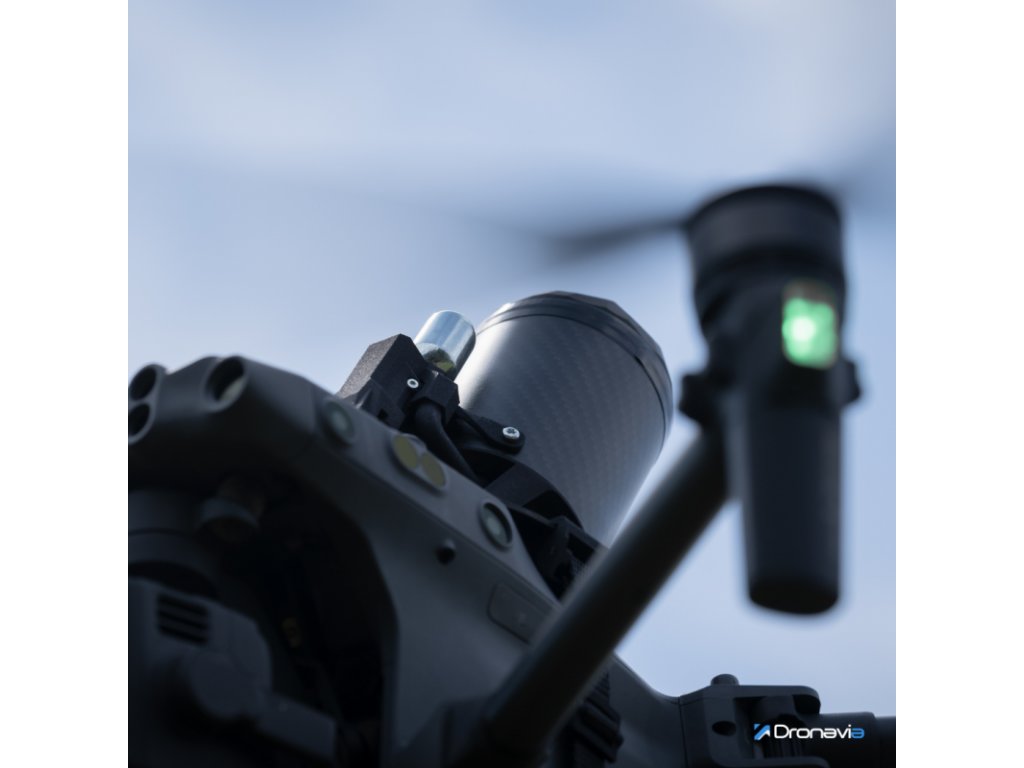

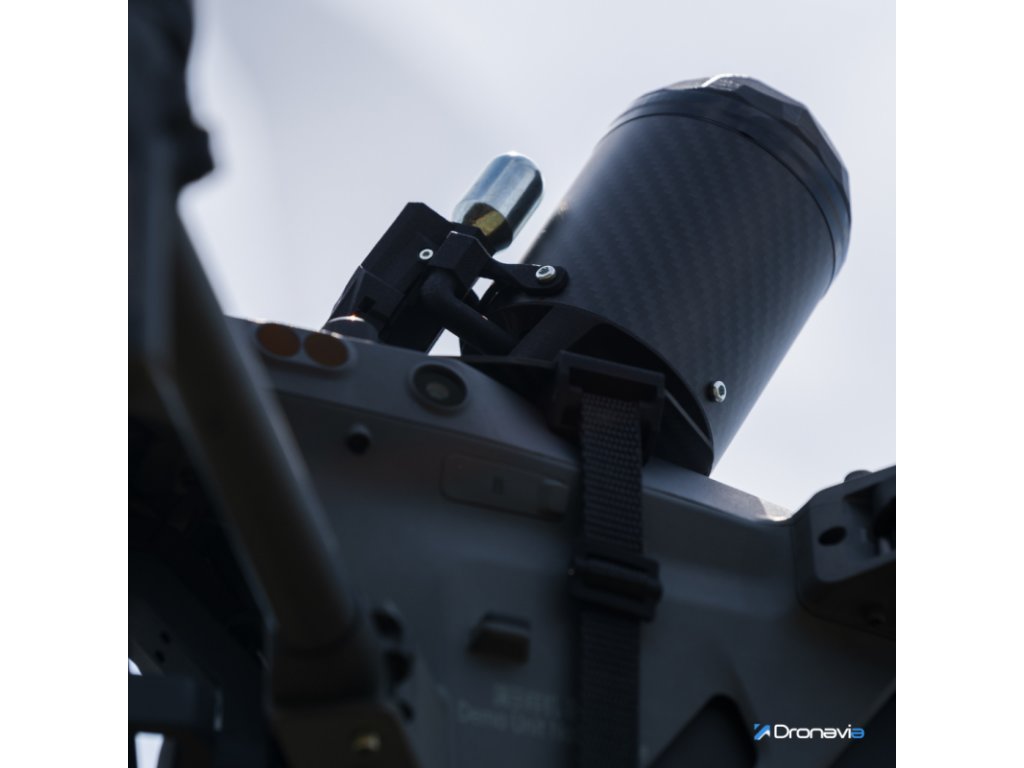

The CO2 ejection system of Zéphyr parachutes has been tested and used by a majority of French drone pilots for more than 5 years. Numerous tests and successive improvements have brought this system to levels of reliability never before achieved on a drone parachute. The pressurised gas (60 bars!) is released in a fraction of a second to propel the parachute fabric out of its container. The excess gas released (each cartridge contains several dozen litres) is used to accelerate the deployment of the canopy and minimise the loss of altitude when the parachute is triggered. The system can be reset in a few seconds. The CO2 cartridge is the only consumable to be changed on the system after a deployment and a cartridge costs only a few euros. There are no constraints for professional pilots travelling by air. Most airlines offer the possibility to put your Zéphyr M30 system in the hold or in the cabin with the 4G gas cartridge.

On the Zéphyr M30 dual canopy parachute system, the CO2 ejection system allows the canopies to be ejected and opened in just 0.83 seconds, which corresponds to a 10m loss of altitude from an initial fall speed of approximately 6m/s.

The lightest, most stable and most efficient drone canopies

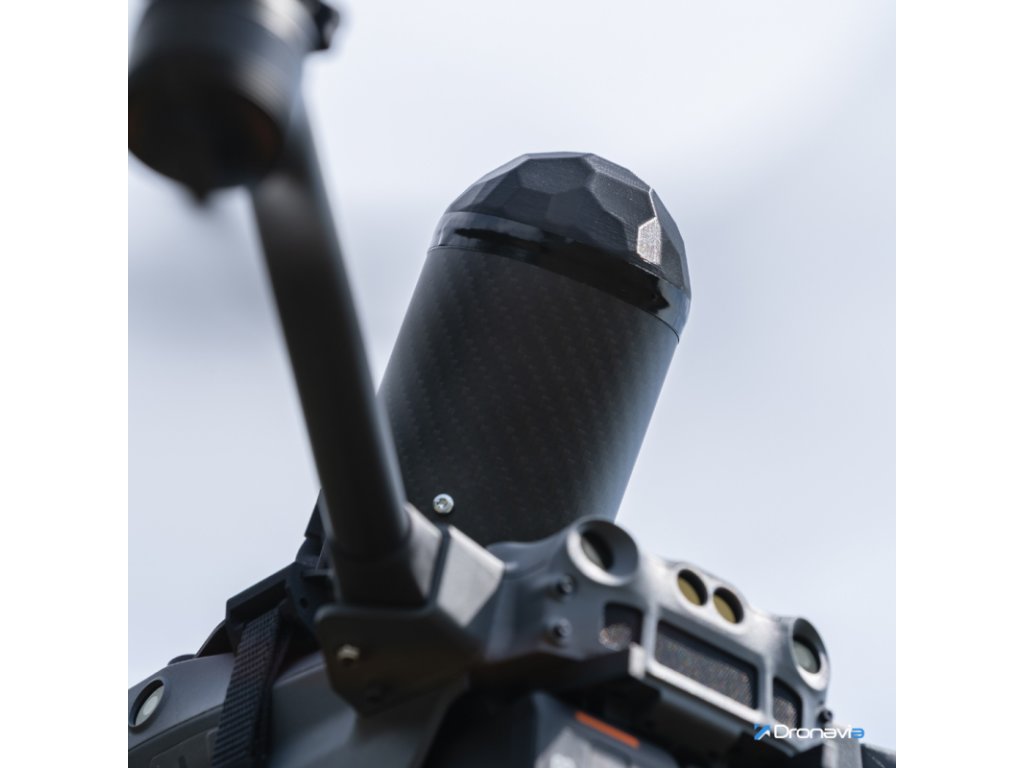

The new PARA² canopies used in Zéphyr parachute systems are the result of 3 years of development. Their innovative ultra-lightweight design and unique construction give PARA² canopies superior efficiency and stability. On single canopy systems, the drop rate is minimised in relation to the canopy surface. When used in pairs, PARA² canopies do not interfere with each other and optimise the overall sink rate. Each Zephyr parachute is designed so that the canopy(s) keep the drone as flat as possible during its fall in order to minimise damage on impact.

On the Zéphyr M30 parachute system with two canopies, the fall speed for a mass of 4.2 kg is only 5 m/s, i.e. an impact energy of only 55 Joules, much lower than the maximum 69 Joules authorised in France.

A long-range encrypted communication system

The long-range communication system between the radio and the parachute is based on advanced technology and LoRa modulation. Its range reaches 5 km in optimal conditions and a long range option allows to exceed 10 km. The communication protocol is based on the 869 MHz frequencies, which are free of authorisation (433 and 915 MHz options available). A 128-bit encryption ensures that the data is not intercepted and the user is warned if the communication is disturbed. Practical user features The parachute, FTS and radio control modules are equipped with LEDs for status indication and advanced functions.

The LEDs indicate the remaining battery charge at switch-on and switch-off and the battery level during charging. In operation, they indicate the instantaneous status of the system: correct operation, loss of radio link, low battery level... Coupled with a FTS, the parachute turns on automatically when the drone is turned on. If there is no signal and you forget to switch off the parachute or the radio control, the modules switch off automatically after 10 minutes. A time-stamped logging system is integrated on the parachute and radio. It records the triggering actions performed by the user for diagnostic purposes.

Many options... ahead of the regulations!

The options available with Zéphyr parachutes allow you to be one step ahead of French and European regulations. On the remote control side, it is possible to add a second redundant release button. This second button avoids unwanted presses on a single button and doubles the autonomy of the remote control. Safety caps protect the buttons against accidental pressing. A buzzer module is available on request. It generates an audible warning in case of loss of connection with the parachute. A long range option allows the radio range to be extended to over 10 km if required. It is also possible to link several radio controls with one parachute, or several parachutes with one radio control.

On the parachute side, a crash detection and automatic deployment module is available on request. This module will eventually be compatible with ASTM3322 and future European standards (classes C5 and C6 for STS-01 and STS-02 scenarios). Dronavia is anticipating the new European regulations by bringing its autonomous engine shutdown system (Zéphyr CC M30) into compliance with the MOC 25-11. This approval will allow professional pilots to simplify the process of obtaining a SORA.

Dodatočné parametre

Kategória: Príslušenstvo pre DJI M30
Záruka: 2 roky

Buďte prvý, kto napíše príspevok k tejto položke.

Nevypĺňajte toto pole:

Buďte prvý, kto napíše príspevok k tejto položke.

Nevypĺňajte toto pole:

Dronavia je francúzska spoločnosť špecializujúca sa na dizajn a výrobu príslušenstva a bezpečnostných systémov pre drony. Predáva široký sortiment padákov a FTS modulov schválených EASA. Takzvané Special Operations Risk Assessment (SORA) je dokument vydaný spoločnosťou EASA (Európska agentúra pre bezpečnosť letectva), ktorá firmám umožňuje vykonávať operácie špeciálnej kategórie. Tieto operácie sú letové činnosti, ktoré sú neštandardné a považujú sa za bežné zvýšené bezpečnostné riziko v porovnaní s pravidelnou letovou prevádzkou. Aby firma získala SORA, musí preukázať, že má primerané riziko a zavedené opatrenia riadenia bezpečnosti (ako napríklad systém FTS) pre jeho špeciálne operácie, a že je schopná vyhovieť platným regulačným požiadavkam. SORA je platí na dobu určitú a môže byť obnovená resp zmenené a doplnené EASA v závislosti od vývoja činnosti spoločnosti.

DroneRepublic.sk je od roku 2022 výhradným dovozcom a predajcom padákov Dronavia na Slovensku.
